Wear strips and components are often made of plastic, which provides protection from surface marring and scratching, noise reduction between mating parts, and elimination of slipping and sticking amid sliding parts. One of the most common plastic materials used in wear strip applications is UHMW (Ultra High Molecular Weight Polyethylene). UHMW’s unique properties including high impact/abrasion resistance, self-lubrication, long wear life and ease of machining make it ideal for this application. Wear strips and components are resistant to corrosion and chemicals and able to keep moving parts free of external grease and lubricants. Wear strips and components are commonly used with bearings, slides, gears, cams, bushings, and rollers.

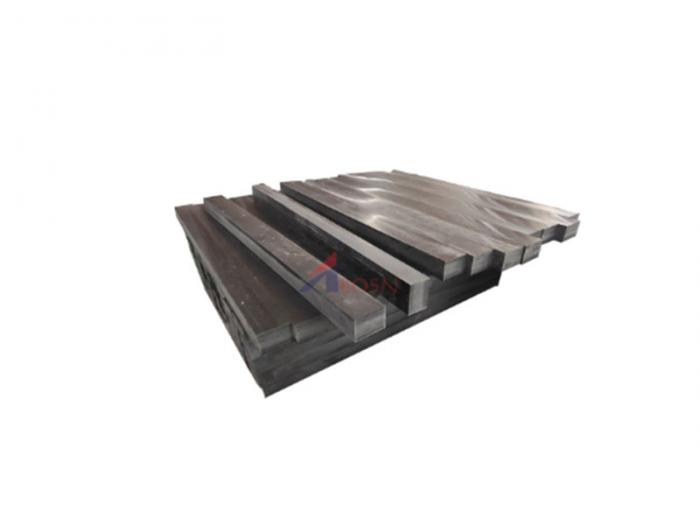

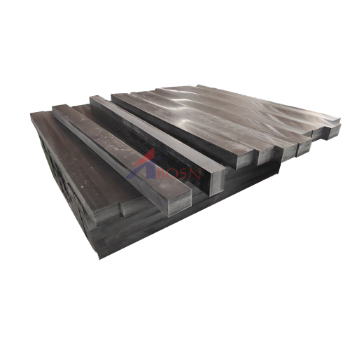

UHMWPE wear resistant strip Applications Characters:

1.very flat on the surface

2.The thickness tolerance is +2 -0,some made according to your requirements.

3.The color is pure and any color can be made by us.

4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.

5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.

6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.

UHMWPE wear resistant strip Applications

1,Used as lining board for bunker,chute,mixer,warehouse etc selflubrication and wear resisting needed areas

2,Made into block,dock fender board etc special purpose and special shaped products.
3,Made into all kinds of mechanical parts according to drawings under the help of lathe,mill machine and mould.

4,Due to the excellent property of high intensity and impact resisting,UHMWPE boards have been used in military include pallet for bulletproof jacket and bulletproof shield ,Protection level III and IV .

5,Other fields include Ice rink,water tank etc
