UHMWPE fender pads Dock Bumper Pads Wharf Fender Panel
-
◆ Product name：
UHMWPE fender pads Dock Bumper Pads Wharf Fender Panel
-
◆ Sort：
UHMWPE SHEET
-
◆ Num：
SN1632556395
UHMWPE1000 ultra high molecular weight polyethylene (UHMW-PE) is the first choice material for facing steel fender panels and other heavy duty applications. It combines very low friction with excellent impact strength and a wear resistance much better than steel. The standard colour is black, but if other colours are needed then UHMWPE 1000-V ‘virgin’grade also comes in yellow, white, grey, blue, green and red. UHMW-PE1000 materials are compounded to resist ozone and UV radiation.They do not degrade or rot and are easily recycled at the end of their service life.
UHMWPE fender pads specification:

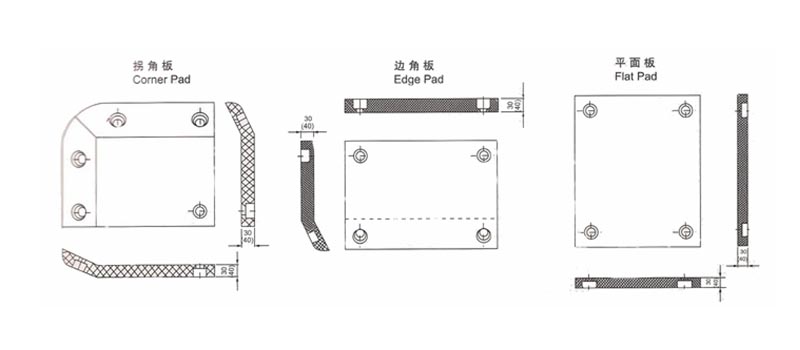

UHMWPE corner fender pads,UHMWPE edge fender pad, UHMWPE flat fender pad are all available.Please contact us for special requirements.
UHMWPE fender pads advantages:
1.Very high impact strength
2. very low friction coefficient
3. 100% recyclable,non rottening
4. Cut size sheet,any size is available..
5. Very high abrasion resistance
6. UV+Ozone resistance
UHMWPE fender pads properties
Item
Test method
Unite
UHMWPE 1000-V
UHMWPE 1000-DS
Density
ISO1193-1
g/cm3
0.93-0.95
0.95-0.96
Yield Strength
ASTM D-638
N/mm2
15-22
15-22
Breaking Elongation
ISO527
%
>200%
>100%
Impact Strength
ISO179
Kj/m2
130-170
90-130
Abrasion
ISO15527
Steel=100
80-110
110-130
Shore Hardness
ISO868
Shore D
63-70
63-75
Friction coefficient(Static state)
ASTM D-1894
Unitless
<0.2
<0.2
Operating temperature
-
℃
-80 to +80
-80 to +80
