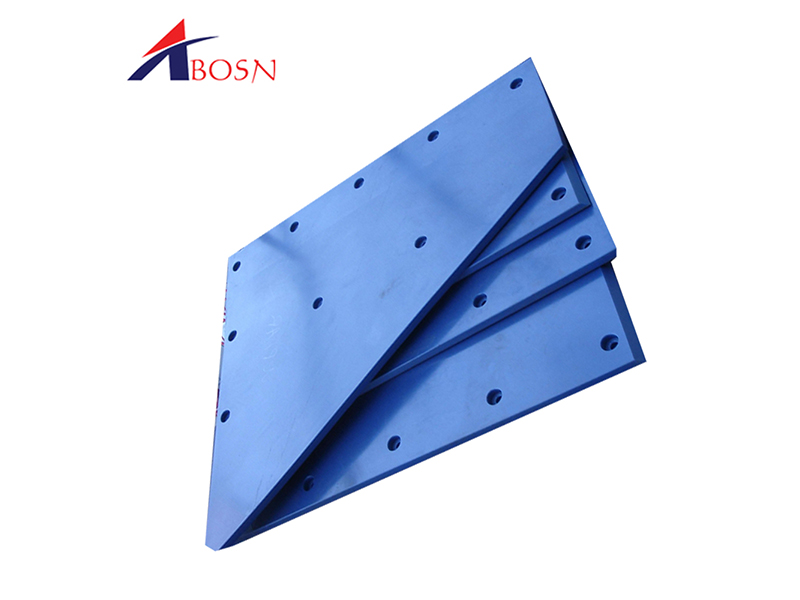

UHMWPE Plastic Coal Bunker Silos Liner Sheet with Corrosion Resistance
-
◆ Product name：
UHMWPE Plastic Coal Bunker Silos Liner Sheet with Corrosion Resistance
-
◆ Sort：
UHMWPE wear resistant liners
-
◆ Num：
SN1660700914
|
Property |
Value |
|
Density |
0.94~0.98 g/cm³ |
|
Working temperature |
-269~85℃ |
|
Melting temperature |
130~160℃ |
|
Elongation break |
350% |
|
Tensile strength |
45.3MPa |
|
Rockwell hardness |
R57 |
|
Bending strength |
23MPa |
|
Compressive strength |
≥30 MPa |
|
Impact strength |
100~160KJ/m³ |
|
Charpy notched impact strength |
≥140 KJ/m² |
|
Ball indentation hardness |
≥40 N/mm² |
|
Heat conductivity |
0.14~0.16%(m/m) |
|
Water absorption |
≤0.01% |
Key properties of UHMWPE liner, coal bunker liner:
· No incrustatons of bulkmaterial
· No bridging caused in hoppers
· Enhanced protection of plan tand machinery against wear
· Faster bulk material flow
· Costo flining exist hopper with PE1000 is one third of the cost of mild steel
· PE-UHMW is half the weight of steel, despite being three times as thick

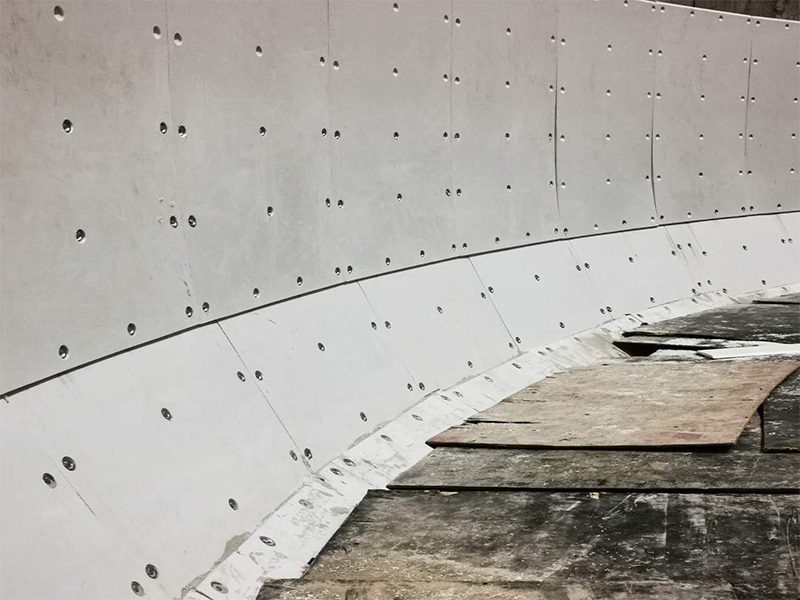

UHMWPE liner application:
1)Hopper Liners
2)Blacktop Liners
3)Gravity Box Liners
4)Dump Truck Liners
5)Forage Box Liners
6)Forage Wagon Liners
7)Manure Spreader Liners
8)Air Boat Hull Bottom Liners
